The Expert Mounts product line

Every current Expert Mounts model, with a full spec sheet for each. Complete mounts are listed below; the modular pipe-system components (pipes, plates, heads, adapters) have their own family tables. Everything is sold factory-direct at VideoMountStore.com.

Ceiling Mounts

Single-screen ceiling mounts on the 1.5" NPT mast system, plus tilt/rotate mounts for smaller screens, the flip-down folding mount, and the dental operatory mount. Full category detail, configuration guidance, and FAQ: ceiling TV mounts.

ModelProductScreen sizeCapacityMax VESATiltOrigin
33CE008 TV Ceiling Mount for 32 to 86 inch, Tilt, Rotate, Configurable Length 32 to 86 in 176 lb 700x400 10° -
33CE016 TV Ceiling Mount for 32 to 70 inch, Tilt, Rotate, Adjustable Mast 32 to 70 in 110 lb 400x400 12° -
33CE017 TV Ceiling Mount for 32 to 70 inch, 600x400 VESA, Adjustable Mast 32 to 70 in 110 lb 600x400 12° -
33FD001 Flip Down Folding TV Ceiling Mount for 32 to 70 inch 32 to 70 in 100 lb 600x400 None Made in USA
33CE33TW Flat Panel Ceiling Mount for 32 to 50 inch, Tilt and Rotate 32 to 50 in 150 lb 800x480 15° -
22CE002 Single TV Ceiling Mount for 10 to 43 inch, Tilt and Rotate 10 to 43 in 65 lb 200x200 20° -
22CE006 TV Ceiling Mount for 24 to 43 inch, Tilt, Rotate, Adjustable Mast 24 to 43 in 110 lb 200x200 12° -
22CE010B TV Ceiling Mount for 23 to 42 inch Flat Panels 23 to 42 in 60 lb 200x200 20° -
DD TV Ceiling Mount with 90 Degree Tilt for Dental Operatory 19 to 39 in 75 lb 200x200 90° -
11CE002 TV Ceiling Mount for 10 to 24 inch, Tilt and Rotate 10 to 24 in 60 lb 100x100 20° -

Fixed & Corner Wall Mounts

Low-profile fixed mounts that hold the screen flat to the wall, from small panels to 86 inch displays. Full category detail and FAQ: TV wall mounts.

ModelProductScreen sizeCapacityMax VESATiltOrigin

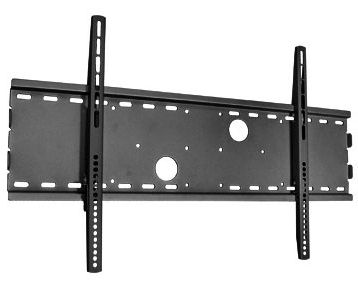

33FW001 Flat Panel Wall Mount for 37 to 86 inch 37 to 86 in 140 lb 774x469 None -
33LE001 Ultra Low Profile Fixed Wall Mount for 32 to 65 inch 32 to 65 in 110 lb 670x600 - -
11CM001 TV Corner Mount for 32 to 55 inch 32 to 55 in 165 lb 774x469 - -
33FW005 Fixed TV Wall Mount for 32 to 50 inch 32 to 50 in 100 lb 650x400 None -
22FW002 Fixed TV Wall Mount for 15 to 37 inch 15 to 37 in 100 lb 200x200 None -
11FW001 Flush TV Wall Mount for 10 to 24 inch 10 to 24 in 40 lb 100x100 - -

Tilting Wall Mounts

Wall mounts with downward tilt for screens mounted above eye level.

ModelProductScreen sizeCapacityMax VESATiltOrigin
33TW003 Tilting TV Wall Mount for 32 to 86 inch 32 to 86 in 176 lb 700x400 10° -

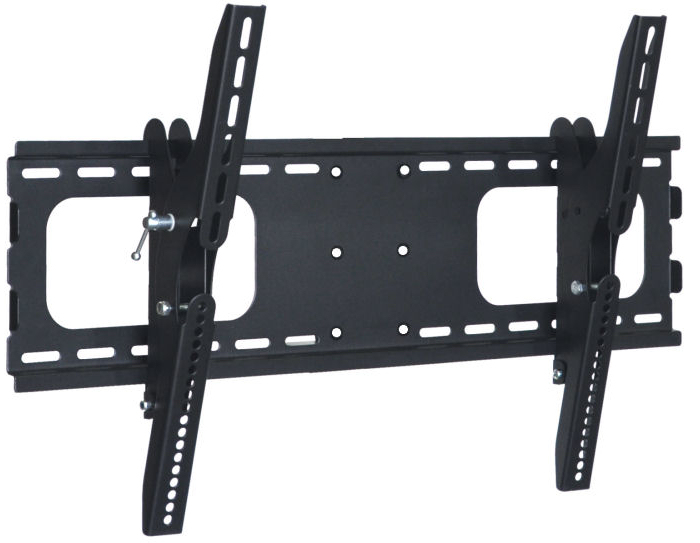

33TW002 Tilting Wall Mount for 32 to 60 inch Flat Panels 32 to 60 in 165 lb 760x470 15° -
33TW005 Tilting TV Wall Mount for 32 to 50 inch 32 to 50 in 100 lb 650x400 15° -
11TW001 Tilting TV Wall Mount for 10 to 27 inch 10 to 27 in 40 lb 100x100 15° -

Full-Motion Wall Mounts

Articulating arms, swivel mounts, and the cabinet slide-out mount.

ModelProductScreen sizeCapacityMax VESATiltOrigin
33WA003 Swivel TV Wall Mount for 32 to 75 inch 32 to 75 in 150 lb 770x480 15° -
33SL001 Cabinet Slide-Out Swivel TV Mount for up to 65 inch 32 to 65 in 100 lb 774x469 15° -
33WA002 Full Motion Arm Wall Mount for 30 to 52 inch 30 to 52 in 150 lb 810x480 15° -
11WA003 Full Motion TV Wall Mount for 10 to 24 inch 10 to 24 in 30 lb 100x100 10° -

Multi-Screen & Digital Signage

Double-wide, back-to-back, and stacked mounts for menu boards, scoring displays, and signage.

ModelProductScreen sizeCapacityMax VESATiltOrigin
33CE018 Double Stack TV Ceiling Mount for Two Screens, Tilt and Rotate 32 to 86 in 300 lb 700x400 10° -
33CE028 Back to Back TV Ceiling Mount for 32 to 86 inch, Tilt and Rotate 32 to 86 in 250 lb 700x400 10° -
33HE021 Back to Back Ceiling Mount Head for 1.5 inch Pipe, 400x400 32 to 70 in 110 lb 400x400 12° -
33DW001 Double-Wide TV Wall Mount for up to 55 inch 32 to 55 in 300 lb 600x400 15° Made in USA
33DW004 Double Wide Two-Screen TV Ceiling Mount for 32 to 55 inch 32 to 55 in 300 lb 760x470 15° Made in USA
22HE021 Back to Back Ceiling Mount Head for 1.5 inch Pipe, 200x200 24 to 42 in 110 lb 200x200 12° -
22DW001 Double-Wide TV Wall Mount for up to 32 inch 24 to 32 in 200 lb 300x330 15° -

Projector Mounts

Universal projector mounting on the same 1.5" NPT pipe system.

ModelProductScreen sizeCapacityMax VESATiltOrigin
11PM001 Universal Projector Ceiling Mount - - - - -

Specialty Mounts & Stands

Under-cabinet, soundbar, and tabletop mounting.

ModelProductScreen sizeCapacityMax VESATiltOrigin
11UC001 Under Cabinet TV Mount for 10 to 17 inch 10 to 17 in 30 lb 100x100 - -
UNSOMO Universal Soundbar Mount - - - - -

Pipe System Components

Offsets, clamps, collars, and finishing parts for the 1.5" NPT pipe system. Full spec sheet for each.

ModelProductScreen sizeCapacityMax VESATiltOrigin
11FC External Height Adjustment Collar - - - - -
11TR002 Truss Clamp for 1.5 Inch NPT Pipe - 110 lb - - -
OFFSET6 6 Inch Offset for 1.5 Inch NPT Pipe - - - - Made in USA
TRIMRING Ceiling Mast Trim Ring - - - - -

Pipe system & component families

The modular parts: combine a ceiling plate, a 1.5" NPT pipe or telescoping extension, and a mount head to build the exact drop a job needs.

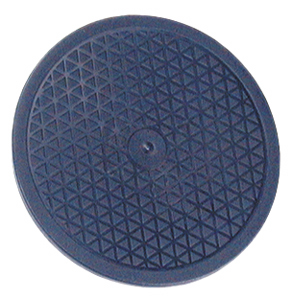

Pipes & ExtensionsPipe, extensions & couplers · 1.5" NPTView Ceiling Plates9 types · flat / angled / Unistrut / beamView Mount Heads5 types · to 600x400 VESAView VESA Adapter Plates3 platesView Shelves & Accessories9 itemsView Turntables2 sizes · to 300 lbView
