Multi-Screen Mount

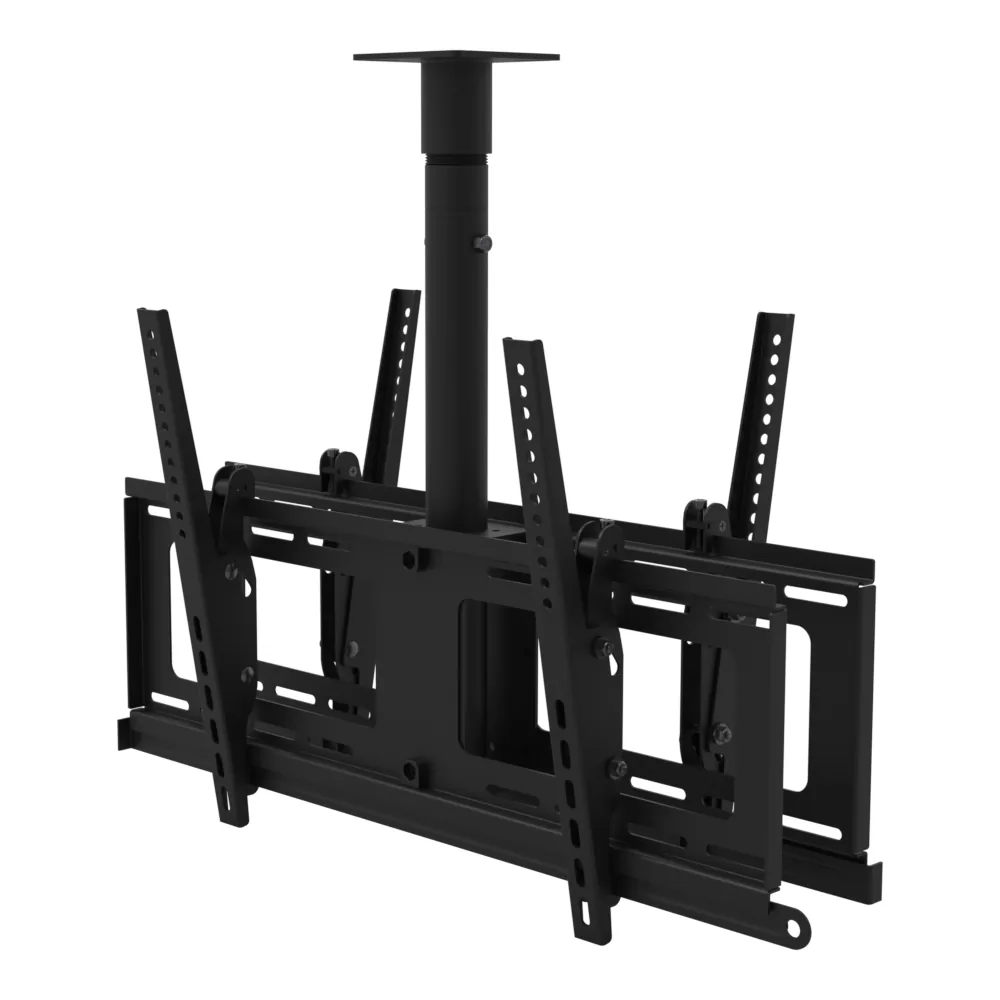

Back to Back TV Ceiling Mount for 32 to 86 inch, Tilt and Rotate
SKU 33CE028 · MPN 33CE028
Back-to-back ceiling mount that hangs two flat-panel screens facing opposite directions from a single mast, rated to 250 lb combined, for displays from 32 to 86 inches. Each head tilts 10 degrees down and 5 degrees up and rotates 360 degrees.
Specifications
| Recommended screen size | 32 to 86 in |
|---|---|
| Weight capacity | 250 lb |
| Tilt | 10° down |
| Rotation | 360° |
| VESA mounting range | 50 × 75 mm to 700 × 400 mm |
| Drop (distance from ceiling) | 17 to 33 in, adjustable |
| Mast / pipe system | 1.5 in NPT |
| Ceiling compatibility | Flat ceiling, Angled / cathedral, Unistrut, I-beam / girder |
| Material | Metal |
| Cable management | Yes |
| Manufacturer | Expert AV Products, Inc. |
| Fits VESA standards (mm) | 100x100, 100x200, 100x300, 100x400, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400, 600x100, 600x200, 600x300, 600x400 |
Details
The mount uses the 1.5" NPT pipe system: two heads mount back to back on one threaded mast below a ceiling plate chosen for the structure - flat ceiling, angled or cathedral ceiling, Unistrut channel, or I-beam with a beam clamp - and the 11CP001 flat plate is also available. The drop is set by the pipe: the distance-from-ceiling range is 17 to 33 inches, and telescoping mast options cover 9 to 17, 17 to 33, 17 to 43, 37 to 53, and 47 to 63 inches, or the heads can be used with no mast. Each head accepts VESA rails from 50 x 75 mm to 700 x 400 mm, covering patterns up to 600 x 400 mm.
A back-to-back mount serves viewers on both sides of a fixture from one ceiling position, with the two screens facing opposite ways. Each head tilts 10 degrees down and 5 degrees up and rotates 360 degrees. The mount anchors to building structure that supports 4 times the total load; do not exceed the 250 lb combined rating, and professional installation is recommended for ceiling-hung displays.
