Ceiling Mount

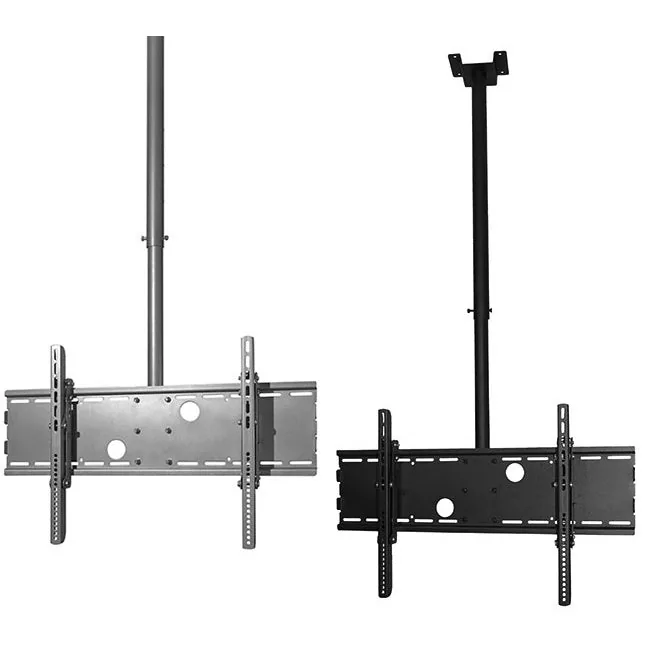

Flat Panel Ceiling Mount for 32 to 50 inch, Tilt and Rotate
SKU 33CE33TW · MPN 33CE33TW
Ceiling mount for flat-panel TVs from 32 to 50 inches, rated to 150 lb. The head tilts up to 15 degrees down and rotates 360 degrees, and the included mast places the screen 39 to 63 inches below the ceiling.
Specifications
| Recommended screen size | 32 to 50 in |
|---|---|
| Weight capacity | 150 lb |
| Tilt | 15° down |
| Rotation | 360° |
| VESA mounting range | 75 × 75 mm to 800 × 480 mm |
| Drop (distance from ceiling) | 39 to 63 in, adjustable |
| Ceiling compatibility | Flat ceiling |
| Manufacturer | Expert AV Products, Inc. |
| Fits VESA standards (mm) | 75x75, 100x100, 200x100, 200x200, 400x200, 600x400 |
Details
The mount installs on a flat ceiling, and the mast adjusts so the middle of the screen sits between 39 and 63 inches below the ceiling surface, which lets the display hang at viewing height under taller ceilings. The head accepts VESA mounting patterns from 75 x 75 mm to 800 x 480 mm, a wide range that covers most displays in this size class. Compatibility depends on the mounting hole pattern and weight rather than the screen size alone: a display fits if its pattern falls within this range and it weighs 150 lb or less.
In use, the 15 degree downward tilt angles the screen toward viewers below, and the 360 degree rotation allows the display to face any direction from a single ceiling position. The mount is available in black or silver. It attaches to the building structure rather than to ceiling tile grid, and professional installation is recommended for ceiling-hung displays. Typical applications include conference rooms, restaurants, classrooms, and digital signage.
