Multi-Screen Mount

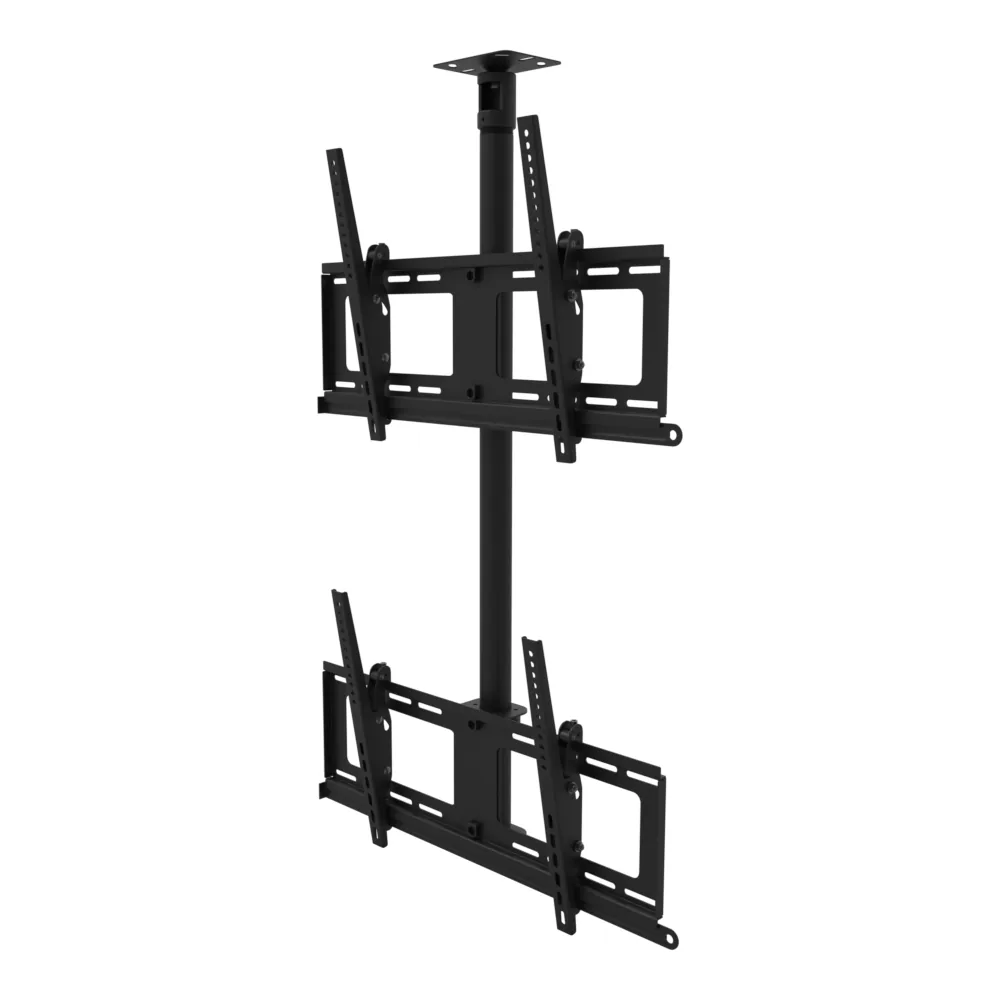

Double Stack TV Ceiling Mount for Two Screens, Tilt and Rotate
SKU 33CE018 · MPN 33CE018
Double-stack ceiling mount that hangs two flat-panel screens from a single mast, rated to 300 lb total and 176 lb per head, for displays from 32 to 86 inches. Each head tilts 10 degrees down and 5 degrees up and rotates 360 degrees.
Specifications
| Recommended screen size | 32 to 86 in |
|---|---|
| Weight capacity | 300 lb |
| Tilt | 10° down |
| Rotation | 360° |
| VESA mounting range | 50 × 75 mm to 700 × 400 mm |
| Mast / pipe system | 1.5 in NPT |
| Ceiling compatibility | Flat ceiling, Angled / cathedral, Unistrut, I-beam / girder |
| Material | Metal |
| Cable management | Yes |
| Manufacturer | Expert AV Products, Inc. |
| Fits VESA standards (mm) | 100x100, 100x200, 100x300, 100x400, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400, 600x100, 600x200, 600x300, 600x400 |
Details
The mount uses the 1.5" NPT pipe system. Two mount heads stack on one threaded mast below a ceiling plate selected for the structure - flat ceiling, angled or cathedral ceiling, Unistrut channel, or I-beam with a beam clamp. The standard configuration gives a fixed 39 inch drop on a 42 inch pipe; with the EXT4472 telescoping extension the drop adjusts from 41 to 69 inches. Each head accepts VESA rails from 50 x 75 mm to 700 x 400 mm, covering patterns up to 600 x 400 mm.
Stacking two screens on one mast presents both displays from a single ceiling position, one above the other. Each head tilts 10 degrees down and 5 degrees up and rotates 360 degrees, so the two screens can face the same or different directions. The mount anchors to building structure that supports 4 times the total load; do not exceed 300 lb total or 176 lb on either head, and professional installation is recommended for ceiling-hung displays.
