Slide-Out Swivel Mount

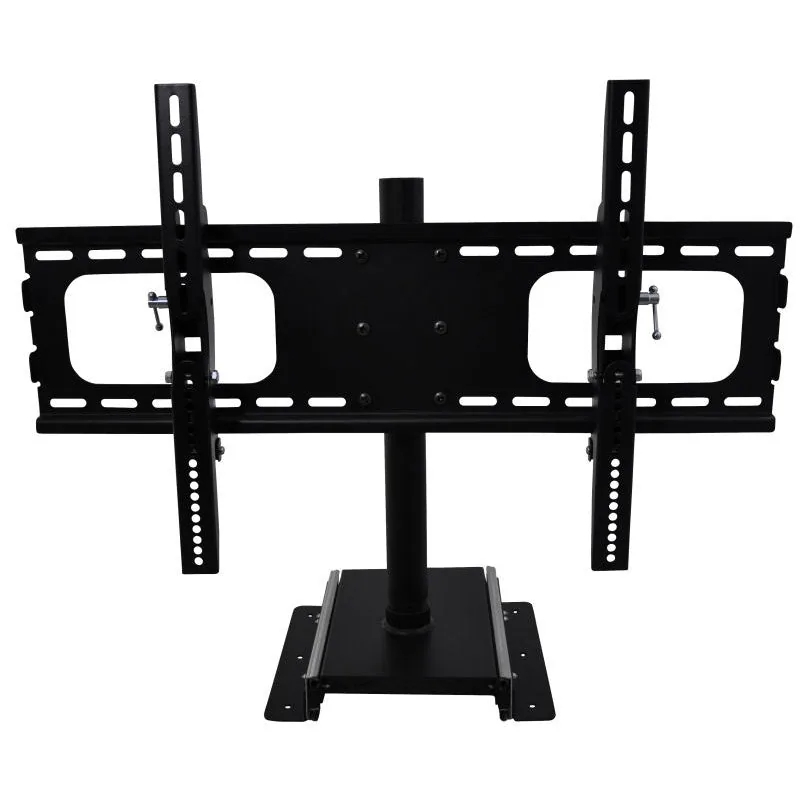

Cabinet Slide-Out Swivel TV Mount for up to 65 inch
SKU 33SL001 · MPN 33SL001
The 33SL001 is a slide-out swivel mount for flat panels from 32 to 65 inches, rated to 100 lb. It installs permanently inside a cabinet, armoire, or wall niche, fastening to the back of the screen and to a horizontal surface in the furniture, and combines slide-out extension with tilt and rotation.
Specifications
| Recommended screen size | 32 to 65 in |
|---|---|
| Weight capacity | 100 lb |
| Tilt | 15° down |
| Rotation | 360° |
| VESA mounting range | 63 × 69 mm to 774 × 469 mm |
| Material | Metal |
| Manufacturer | Expert AV Products, Inc. |
Details
The mount rides on ball-bearing slides: pull the screen forward and it glides up to 13 inches out of the opening, clearing the cabinet face so the panel can turn. Once extended, the screen rotates 360 degrees to face either side of the room and tilts up to 15 degrees down. Pushing the screen back stores it inside the cabinet, and a panel larger than the opening can be mounted flush with the front so the screen covers the hole. It fits VESA patterns from 63 x 69 to 774 x 469 mm.
This mount is for entertainment centers, armoires, built-in cabinetry, and wall niches where the screen stores out of sight and pulls out for viewing. Fasten it to a solid horizontal surface able to carry the load; hardware for attaching the mount to the furniture is not included, so select fasteners to match the cabinet material. Keep the screen weight within the 100 lb rating and leave generous cable slack so connections can follow the full slide and rotation travel.
