Full-Motion Wall Mount
Swivel TV Wall Mount for 32 to 75 inch
SKU 33WA003 · MPN 33WA003

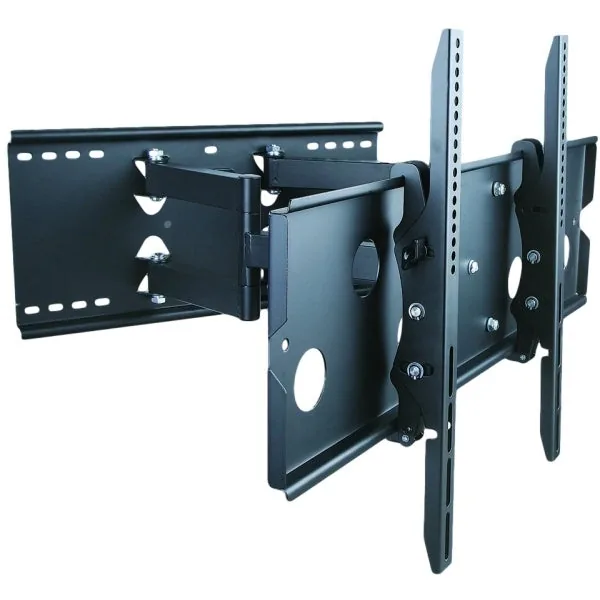

The 33WA003 is a full-motion swivel wall mount for flat panels from 32 to 75 inches, rated to 150 lb. The arm extends from 4.5 to 20.25 inches off the wall, tilts up to 15 degrees down, and swivels up to 60 degrees left or right.
Specifications
| Recommended screen size | 32 to 75 in |
|---|---|
| Weight capacity | 150 lb |
| Tilt | 15° down |
| VESA mounting range | 50 × 50 mm to 770 × 480 mm |
| Extension from wall | 4.5 to 20.25 in |
| Manufacturer | Expert AV Products, Inc. |
Details
Retracted, the arm holds the screen 4.5 inches from the wall; fully extended it reaches 20.25 inches, enough to pull a large panel clear of a recess or angle it across a corner. Swivel of up to 60 degrees in either direction lets the screen face viewers well off to the side. A locking mechanism keeps the screen latched to the wall plate, and a built-in bubble level helps level the mount during installation. It fits VESA patterns from 50 x 50 to 770 x 480 mm.
The long extension and wide swivel suit corner installations in bars, waiting rooms, and other spaces where viewers sit off-axis from the wall. Fasten the wall plate to studs or other solid structure sized for the load, and keep the screen weight within the 150 lb rating. Leave cable slack for the full 20.25 inch extension and 60 degree swivel so connections are not strained when the arm moves. Mounting hardware for the screen and wall is included.
