Ceiling Mount

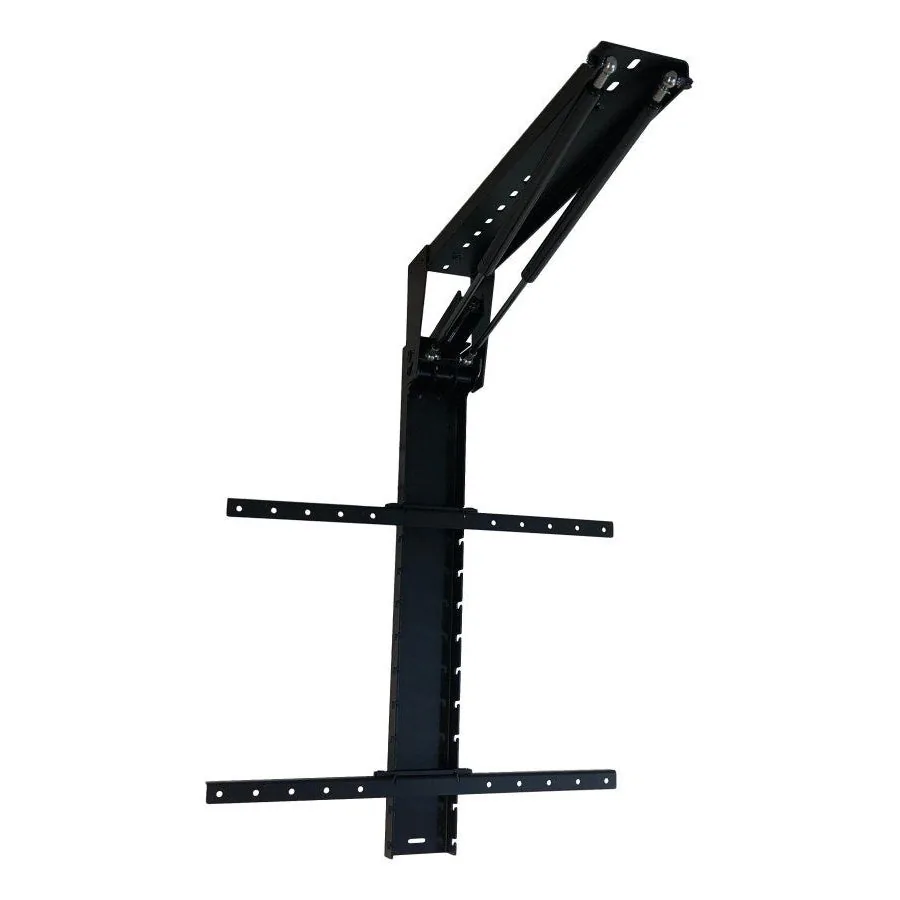

Flip Down Folding TV Ceiling Mount for 32 to 70 inch
SKU 33FD001 · MPN 33FD001
Flip-down folding ceiling mount for flat-panel TVs from 32 to 70 inches, rated to 100 lb. The TV stores flat against the ceiling and hinges down for viewing, so the screen stays out of the way when it is not in use.
Specifications
| Recommended screen size | 32 to 70 in |
|---|---|
| Weight capacity | 100 lb |
| Tilt | None (fixed) |
| VESA mounting range | 200 × 100 mm to 600 × 400 mm |
| Ceiling compatibility | Flat ceiling |
| Material | Metal |
| Country of origin | Made in USA |
| Manufacturer | Expert AV Products, Inc. |
| Fits VESA standards (mm) | 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400, 600x100, 600x200, 600x300, 600x400 |
Details
The mount installs on a flat ceiling and holds the screen in a fixed position when lowered; there is no separate tilt adjustment. Support tension is adjustable to match the weight of the TV, up to the 100 lb rating, and the mounting height adjusts in 50 mm increments. When retracted, the assembly extends about 9 inches down from the ceiling. The metal frame accepts VESA mounting patterns from 200 x 100 mm to 600 x 400 mm; fit depends on the mounting hole pattern and weight rather than the screen size alone.
To operate the mount, the user pulls an adjustable-length strap to fold the TV down for viewing, then pushes it back up to stow it against the ceiling. The mount attaches to the building structure rather than to ceiling tile grid, and professional installation is recommended for ceiling-hung displays. Typical applications include rooms where wall mounting is blocked by doors or windows, covered patios where the screen folds up out of the weather, and multi-use spaces such as conference rooms that need the display cleared when not in use.
