Ceiling Mount

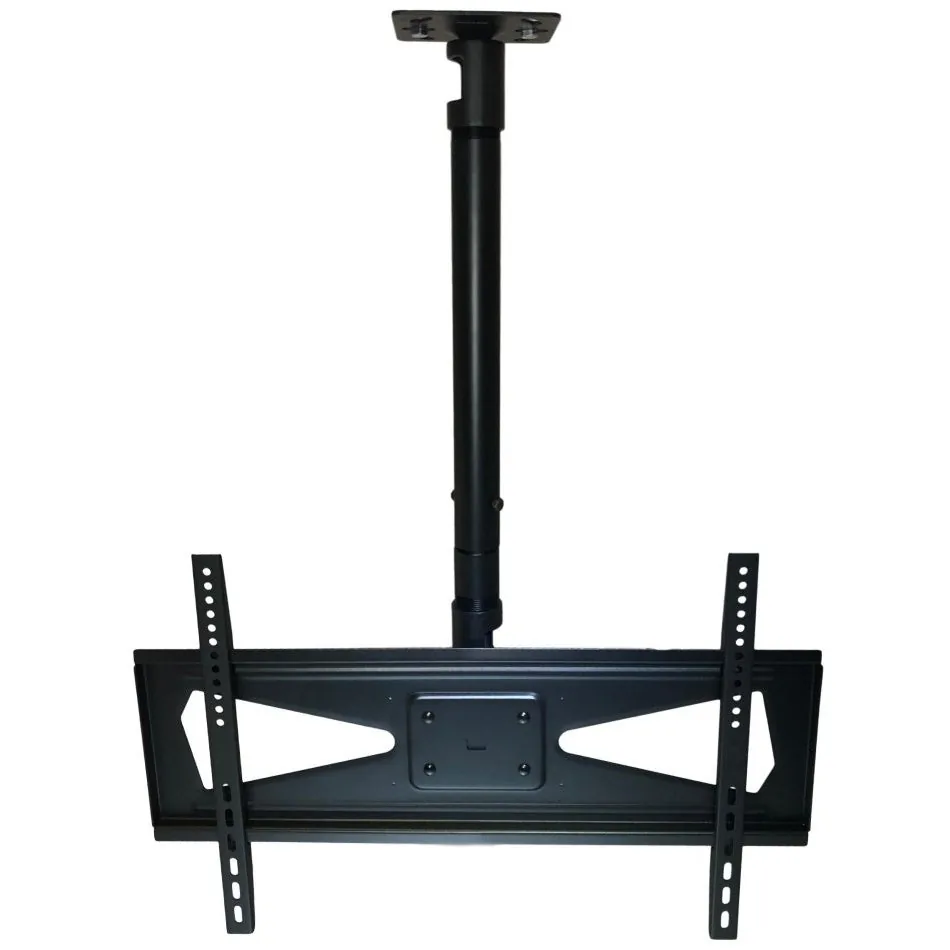

TV Ceiling Mount for 32 to 70 inch, 600x400 VESA, Adjustable Mast
SKU 33CE017 · MPN 33CE017
Ceiling mount for flat-panel TVs from 32 to 70 inches, rated to 110 lb, with support for VESA mounting patterns up to 600 x 400 mm. The head tilts 12 degrees down and rotates 360 degrees.
Specifications
| Recommended screen size | 32 to 70 in |
|---|---|
| Weight capacity | 110 lb |
| Tilt | 12° down |
| Rotation | 360° |
| VESA mounting range | 50 × 50 mm to 600 × 400 mm |
| Mast / pipe system | 1.5 in NPT |
| Ceiling compatibility | Flat ceiling, Angled / cathedral, Unistrut |
| Manufacturer | Expert AV Products, Inc. |
| Fits VESA standards (mm) | 100x100, 100x200, 100x300, 100x400, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400, 600x100, 600x200, 600x300, 600x400 |
Details
The mount uses the 1.5" NPT pipe system: a threaded mast connects the head to a ceiling plate chosen for the structure - flat ceiling, angled or cathedral ceiling, or Unistrut channel. Because the mast is standard 1.5" NPT pipe, the drop is set by the pipe or telescoping extension selected, so the screen can hang at the height the room requires. The head accepts VESA patterns from 50 x 50 mm to 600 x 400 mm, the wider pattern range used by many larger commercial displays; fit depends on the mounting hole pattern and weight rather than the listed screen size alone.
The 12 degree downward tilt angles the screen toward viewers, and the 360 degree rotation sets the facing direction from a single ceiling position. The mount attaches to the building structure rather than to ceiling tile grid, and professional installation is recommended for ceiling-hung displays. Typical applications include conference rooms, restaurants, and digital signage installations that use large-pattern displays.
