Fixed Wall Mount
Fixed TV Wall Mount for 32 to 50 inch
SKU 33FW005 · MPN 33FW005

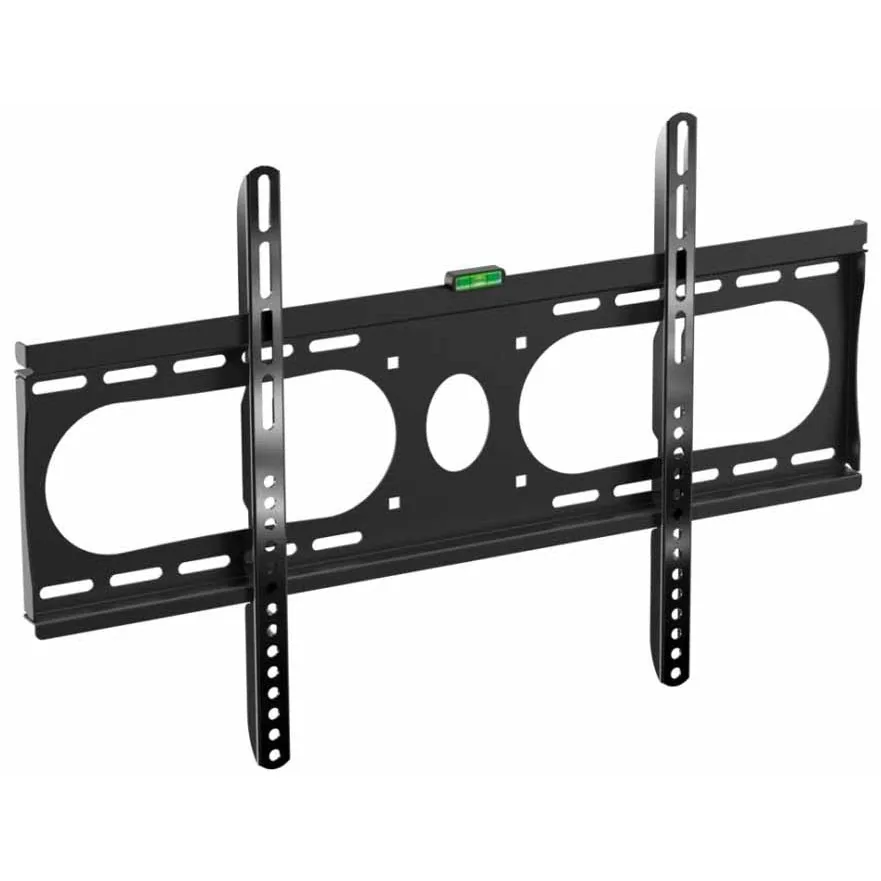

Fixed wall mount for flat panels from 32 to 50 inches, rated to 100 lb. It holds the screen about 1.1" from the wall. Fits VESA mounting patterns from 75 x 75 to 650 x 400 mm.
Specifications
| Recommended screen size | 32 to 50 in |
|---|---|
| Weight capacity | 100 lb |
| Tilt | None (fixed) |
| VESA mounting range | 75 × 75 mm to 650 × 400 mm |
| Profile (distance from wall) | 1.1 in |
| Manufacturer | Expert AV Products, Inc. |
Details
The display attaches to the mount through the threaded VESA holes on its rear panel. Before installing, confirm the display's hole pattern falls between 75 x 75 mm and 650 x 400 mm and that its weight is at or below 100 lb. The mount itself must fasten to wall structure, wood studs or masonry, not to drywall alone; locate the studs before drilling and use fasteners suited to the wall material.
A fixed mount holds the screen flat against the wall with no tilt or swivel, which keeps the profile low and leaves nothing to loosen over time. Install the screen at eye level for the intended viewers, since the angle is set once at installation and does not adjust afterward. The 32 to 50 inch range fits mid-size displays in conference rooms, waiting rooms, restaurants, and digital signage. Do not exceed the rated capacity.
