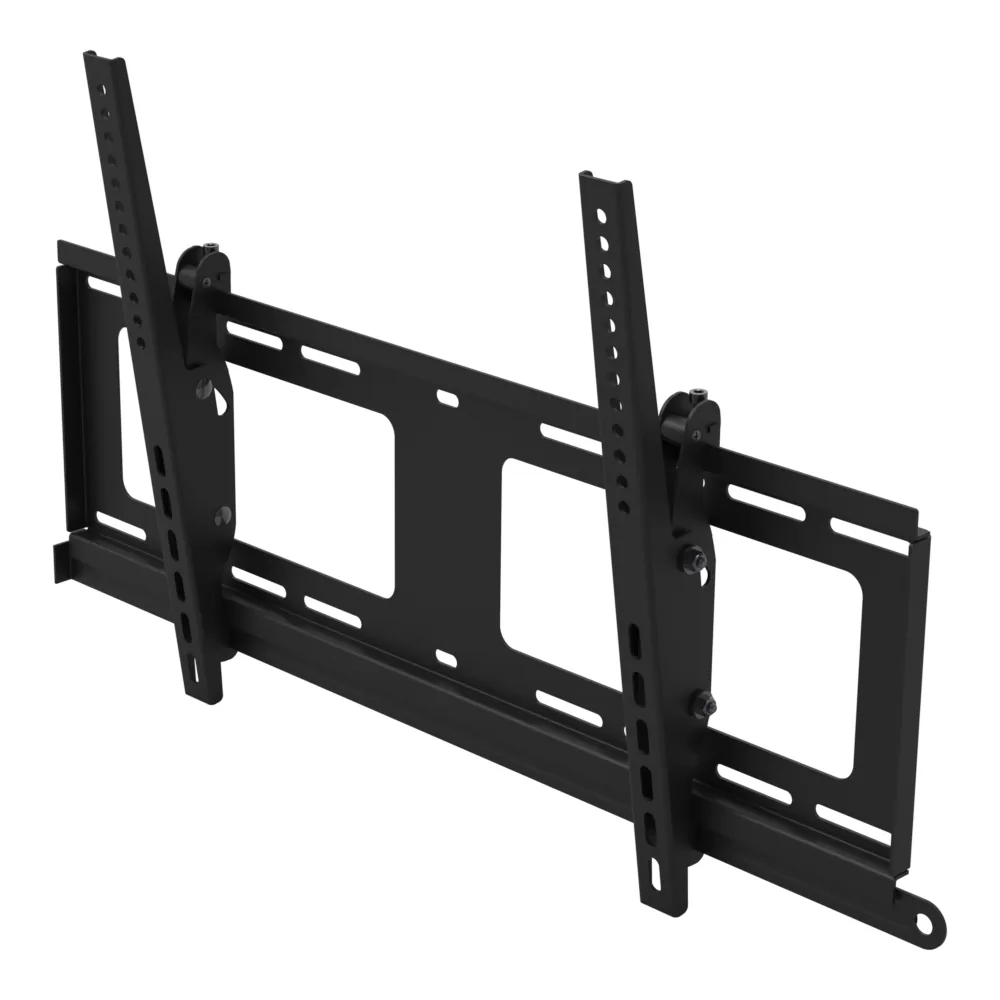

Tilting Wall Mount
Tilting TV Wall Mount for 32 to 86 inch
SKU 33TW003 · MPN 33TW003
Tilting wall mount for flat panels from 32 to 86 inches, rated to 176 lb, with a low 2.1 inch profile. The screen tilts 10 degrees down and 5 degrees up and slides laterally along the wall plate. Fits VESA rails from 50 x 75 mm to 700 x 400 mm. Hardware is included.
Specifications
| Recommended screen size | 32 to 86 in |
|---|---|
| Weight capacity | 176 lb |
| Tilt | 10° down |
| VESA mounting range | 50 × 75 mm to 700 × 400 mm |
| Profile (distance from wall) | 2.1 in |
| Manufacturer | Expert AV Products, Inc. |
| Fits VESA standards (mm) | 100x100, 100x200, 100x300, 100x400, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400, 600x100, 600x200, 600x300, 600x400 |
Details
The display attaches through its rear VESA holes, and the mount fastens to wall structure spanning studs up to 30.5 inches apart. Wood-stud and masonry hardware are both included. Once the display is hung, it slides side to side on the wall plate to center it over furniture or between studs, and the tilt is set from the viewing position.
Downward tilt of 10 degrees, with 5 degrees of up travel, aims a screen placed above eye level toward its viewers, while the 2.1 inch profile keeps the panel close to the wall. Fasten the mount to wall structure, wood studs or masonry, not to drywall alone, and confirm the display weighs no more than 176 lb. The finish is black.
