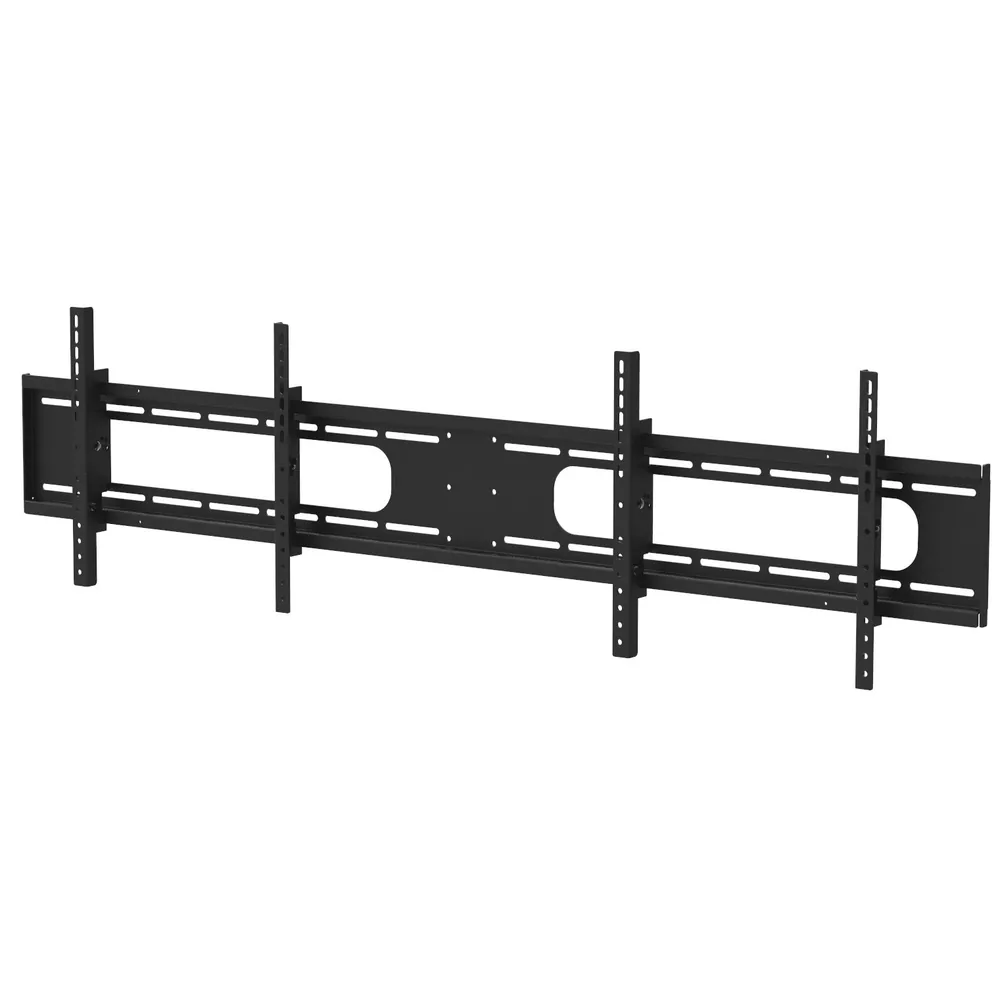

Double-Wide TV Wall Mount for up to 55 inch
SKU 33DW001 · MPN 33DW001
The 33DW001 is a double-wide wall mount that carries two flat-panel screens side by side, for panels from 32 to 55 inches, with a combined capacity of 300 lb. Both screens tilt up to 15 degrees down, and the mount is made in the USA.
Specifications
| Recommended screen size | 32 to 55 in |
|---|---|
| Weight capacity | 300 lb |
| Tilt | 15° down |
| VESA mounting range | 75 × 75 mm to 600 × 400 mm |
| Country of origin | Made in USA |
| Manufacturer | Expert AV Products, Inc. |
Details
Two mounting positions sit next to each other on one frame, so the pair of screens hangs level and evenly spaced from a single installation rather than two separately aligned mounts. Downward tilt of up to 15 degrees points both displays toward viewers below, useful when the assembly hangs high on a wall. Each position accepts VESA patterns from 75 x 75 to 600 x 400 mm, so mixed screen models can share the frame as long as both fall within the 32 to 55 inch range.
Applications include menu boards, digital signage, bowling alley scoring displays, and other paired-screen installations in restaurants, lobbies, and venues. Two 55 inch screens are a substantial load, so fasten the mount to studs or structural blocking rated for the weight, and keep the combined panel weight within the 300 lb limit. Leave enough cable slack at each screen for tilt adjustment so connections are not strained.
