Full-Motion Wall Mount

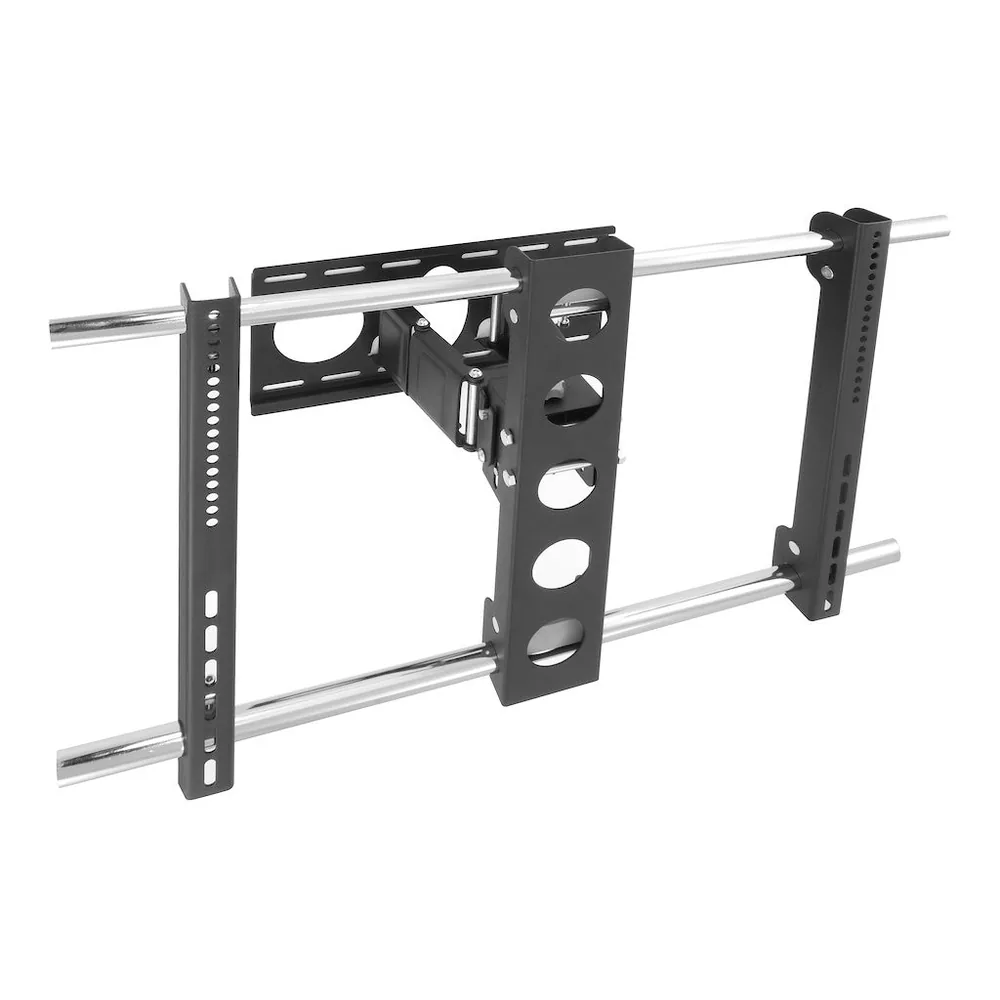

Full Motion Arm Wall Mount for 30 to 52 inch
SKU 33WA002 · MPN 33WA002
The 33WA002 is a full-motion arm wall mount for flat panels from 30 to 52 inches, rated to 150 lb. The arm extends from 5.5 to 11.5 inches off the wall, tilts up to 15 degrees down, and swivels up to 45 degrees left or right depending on screen size.
Specifications
| Recommended screen size | 30 to 52 in |
|---|---|
| Weight capacity | 150 lb |
| Tilt | 15° down |
| VESA mounting range | 200 × 75 mm to 810 × 480 mm |
| Extension from wall | 5.5 to 11.5 in |
| Manufacturer | Expert AV Products, Inc. |
| Fits VESA standards (mm) | 200x100, 200x200, 400x200, 600x400, 800x400 |
Details
At its shortest the arm holds the screen 5.5 inches from the wall, and it extends to 11.5 inches, a shorter reach suited to installations that need modest repositioning rather than long-arm articulation. Swivel is up to 45 degrees to either side; wider screens use less of that range before an edge approaches the wall. The head tilts up to 15 degrees down for screens mounted above seated or standing viewers. The mount accepts VESA hole patterns from 200 x 75 to 810 x 480 mm, which covers a wide spread of panels in the 30 to 52 inch range.
It suits living rooms, conference rooms, and corner placements in bars or waiting rooms where the screen needs a slight angle toward viewers. Fasten the wall plate to studs or other solid structure, never drywall alone, and keep the total hanging weight within the 150 lb rating. Because the arm moves, route cables with enough slack to follow the full extension and swivel travel. Mounting hardware is included.
