Mount Head

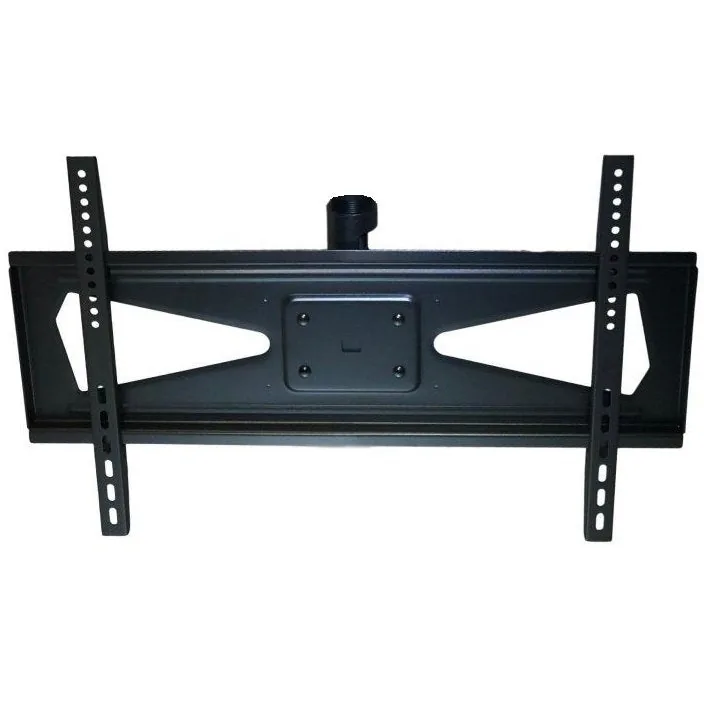

TV Ceiling Mount Head for 1.5 Inch Pipe, 600x400 VESA
SKU 33HE002 · MPN 33HE002
The 33HE002 is a ceiling mount head that threads onto a 1.5" NPT mast, sized for flat panels from 32 to 70 inches and rated to 110 lb. It tilts 12 degrees down and fits VESA patterns from 75 x 75 to 600 x 400 mm.
Specifications
| Recommended screen size | 32 to 70 in |
|---|---|
| Weight capacity | 110 lb |
| Tilt | 12° down |
| VESA mounting range | 75 × 75 mm to 600 × 400 mm |
| Mast / pipe system | 1.5 in NPT |
| Manufacturer | Expert AV Products, Inc. |
Details
This head forms the screen end of the Expert Mounts ceiling-mount system. It threads onto 1.5" NPT pipe - a fixed length or a telescoping extension - suspended below a ceiling plate selected to match the structure it attaches to. Because the pipe determines the drop distance, the head stays the same whether the screen hangs close to the ceiling or well below it. Its mounting plate accepts VESA hole patterns from 75 x 75 mm up to 600 x 400 mm.
The head tilts 12 degrees down to angle the screen toward viewers below. Select it by checking three numbers on the display: a diagonal size between 32 and 70 inches, a VESA hole pattern within the 75 x 75 to 600 x 400 mm range, and a weight of 110 lb or less. Never exceed the rated capacity, and because the load is carried overhead, professional installation is recommended for ceiling products.
