Multi-Screen Mount

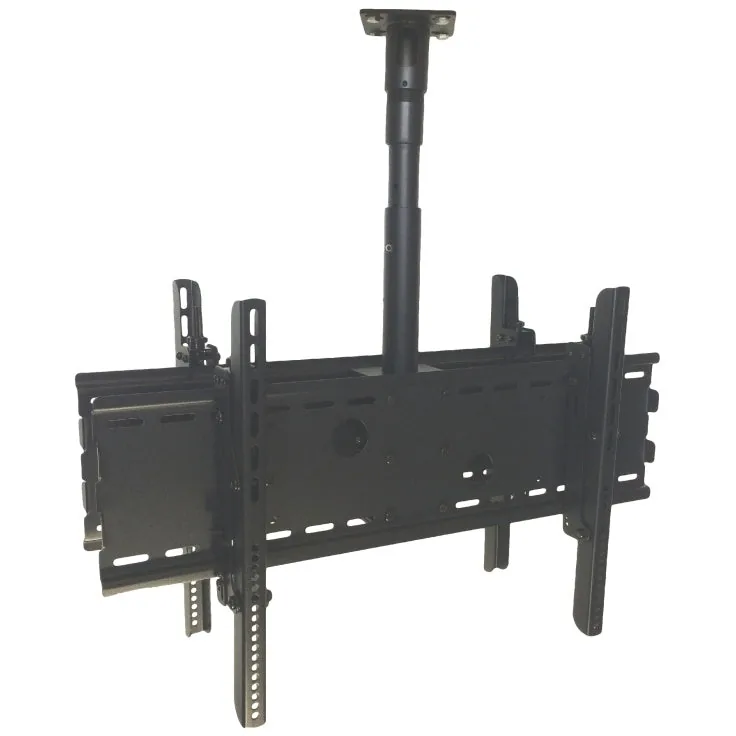

Back to Back TV Ceiling Mount for 32 to 88 inch
SKU 33CE024 · MPN 33CE024
Back-to-back ceiling mount that hangs two flat panels from one drop, each 32 to 88 inches, rated to 300 lb combined. Each screen tilts 15 degrees down and rotates 360 degrees. It mounts on a 1.5" NPT mast, so the ceiling plate and drop length (18 to 31 inches) are chosen to fit the ceiling and the height needed; ceiling plates are available for flat, angled or cathedral, and Unistrut mounting. Cables enter the bottom of the mast and exit through the ceiling plate. Fits VESA patterns up to 760 x 470 mm.
360° rotation
15° tilt
Cable management
1.5" NPT mast
Specifications
| Recommended screen size | 32 to 88 in |
|---|---|
| Weight capacity | 300 lb |
| Tilt | 15° down |
| Rotation | 360° |
| VESA mounting range | 55 × 65 mm to 760 × 470 mm |
| Drop (distance from ceiling) | 18 to 31 in, adjustable |
| Mast / pipe system | 1.5 in NPT |
| Ceiling compatibility | Flat ceiling, Angled / cathedral, Unistrut |
| Material | Metal |
| Cable management | Yes |
| Manufacturer | Expert AV Products, Inc. |
| Fits VESA standards (mm) | 75x75, 100x100, 200x100, 200x200, 200x300, 300x300, 400x200, 400x300, 400x400, 400x600 |
