Ceiling Mount + Shelf
TV Ceiling Mount with Shelf for 32 to 70 Inch
SKU 33CE004SH · MPN 33CE004SH

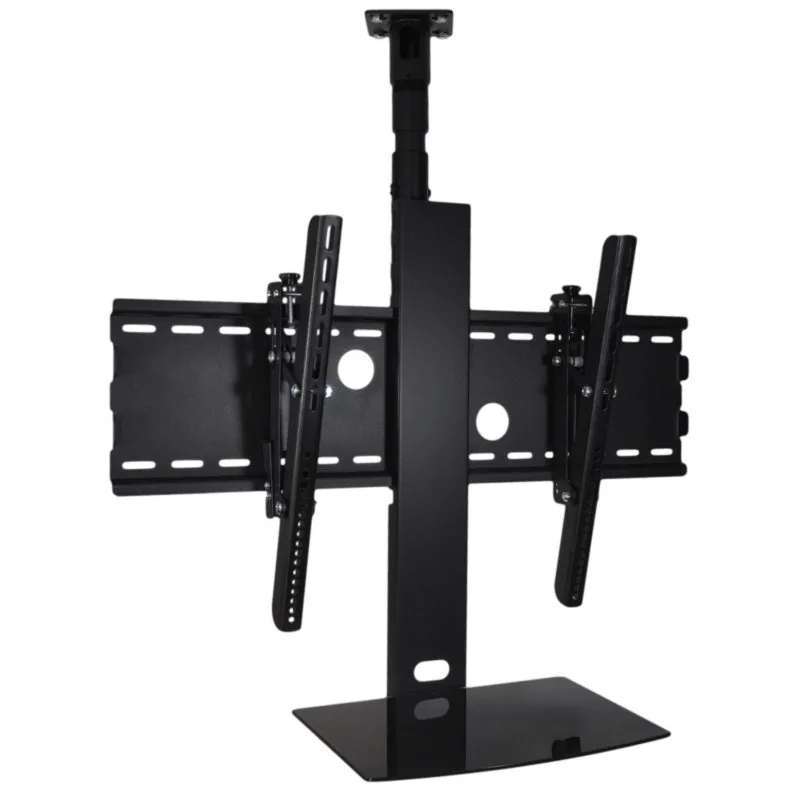

Ceiling mount with a built-in glass shelf for flat panels from 37 to 70 inches, rated to 165 lb. The head tilts 15 degrees down and rotates 360 degrees, and the tempered glass shelf measures 15 inches wide by 11 inches deep and adjusts from 14.5 to 19.5 inches below the center of the screen. It mounts on a 1.5" NPT mast; the ceiling plate is chosen to match a flat, angled/cathedral, or Unistrut structure, and the drop is set from 18 to 31 inches. Fits VESA patterns up to 774 x 469 mm, with cables routed through the mast.
360° rotation
15° tilt
Cable management
1.5" NPT mast
Specifications
| Recommended screen size | 37 to 70 in |
|---|---|
| Weight capacity | 165 lb |
| Tilt | 15° down |
| Rotation | 360° |
| VESA mounting range | 150 × 69 mm to 774 × 469 mm |
| Drop (distance from ceiling) | 18 to 31 in, adjustable |
| Mast / pipe system | 1.5 in NPT |
| Ceiling compatibility | Flat ceiling, Angled / cathedral, Unistrut |
| Cable management | Yes |
| Manufacturer | Expert AV Products, Inc. |
| Fits VESA standards (mm) | 100x100, 100x200, 100x300, 100x400, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400, 600x100, 600x200, 600x300, 600x400 |
