Ceiling Mount

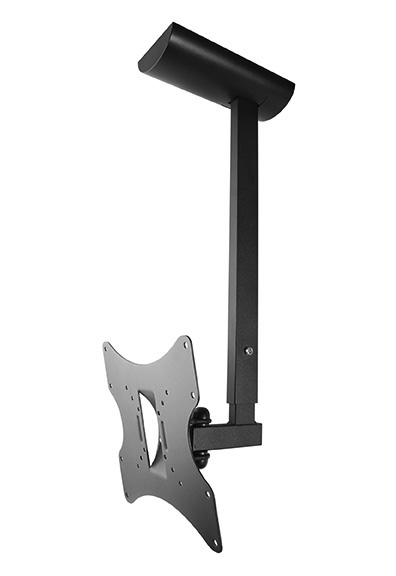

Single TV Ceiling Mount for 10 to 43 inch, Tilt and Rotate
SKU 22CE002 · MPN 22CE002
Ceiling mount for flat panels from 10 to 43 inches, rated to 65 lb. The head tilts 20 degrees down and rotates 360 degrees, and the mast places the screen 39 to 63 inches below the ceiling.
Specifications
| Recommended screen size | 10 to 43 in |
|---|---|
| Weight capacity | 65 lb |
| Tilt | 20° down |
| Rotation | 360° |
| VESA mounting range | 75 × 75 mm to 200 × 200 mm |
| Drop (distance from ceiling) | 39 to 63 in, adjustable |
| Ceiling compatibility | Flat ceiling |
| Cable management | Yes |
| Manufacturer | Expert AV Products, Inc. |
| Fits VESA standards (mm) | 75x75, 100x100, 200x100, 200x200 |
Details
The drop adjusts from 39 to 63 inches, measured from the ceiling to the middle of the screen, so the display can hang at eye level even under a high ceiling. The mount installs on a flat ceiling and accepts VESA mounting patterns from 75 x 75 mm to 200 x 200 mm, the patterns used by most smaller TVs and monitors. Compatibility depends on the mounting hole pattern and weight rather than the listed screen size: a display fits if its pattern falls within this range and it weighs 65 lb or less.
In use, the 20 degree downward tilt angles the screen toward viewers below, and the 360 degree rotation allows the display to face any direction from one ceiling position. A cable management system routes wiring along the mount to keep cords contained. The mount attaches to the building structure rather than to ceiling tile grid, and professional installation is recommended for ceiling-hung displays. Typical applications include conference rooms, restaurants, waiting areas, and small-format digital signage.
